Remove Hardware and Loose Tiles

The first thing to do is to remove the hardware, if necessary.  Tub faucets usually have a screw to hold the handles on.  This screw is sometimes concealed behind a plate on the handle.  You may have to use a razor to pry the cover off.  Next, you have to remove the spigot.  First, inspect the spigot, if there is a hole on the bottom side with an allen-head screw in it, remove the screw and then the spigot.  If not, there is a threaded piece of copper (or, rarely, galvanized) pipe inside of the spigot.  Place a rag on the spigot (if you want to keep it) and use a pipe wrench to twist it off.  BE CAREFUL not to twist the copper pipe that the spigot is normally attached to.  If you do twist it, you will have to cut the elbow off and sweat a new piece on.  If you need help sweating pipe, click here.  If you are working in a tub or sink, you should plug the drain before you go any further so that the debris do not accumulate in the drain.

Remove Tile

Remove the loose tile.  You should remove whole courses so that you have straight lines to work with.  If you are planning to re-use the old tile, extra care must be taken to ensure that you do not break the tile.  Do not pry to heavily on the pieces as they will snap.

The grout can hold the tiles together and needs to be removed.  Using a razor knife, cut out as much grout as possible between the tiles.  Make several passes on each joint.  Next, work on the loosest tiles first.  You may have to lightly pry on the tiles to get them off.  Once you have the first tiles off, you can use a hand scraper to pry the tiles off.  Try to get the scraper as far behind the tiles as possible before you pry.  This will minimize the possibility of breaking the tiles.  You should remove tiles until you get to a course of tiles that are still firmly attached.  This usually the first course above the valves.  Tapping on the tiles can help you figure out which ones are in good shape.  Bad tiles will sound hollow, move or simply fall off the wall.

One other item, make sure that you note where the tiles came from.  If some of them are cut or notched you should make sure you keep track of where they go.

Remove handle screws

Remove handle screws

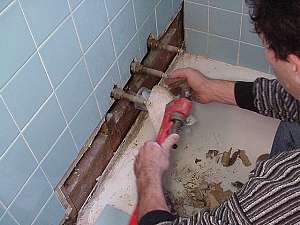

Remove spigot

Remove spigot



Remove tile grout

Remove tile grout
